ESP SubmersibleCables
Submersible Cable

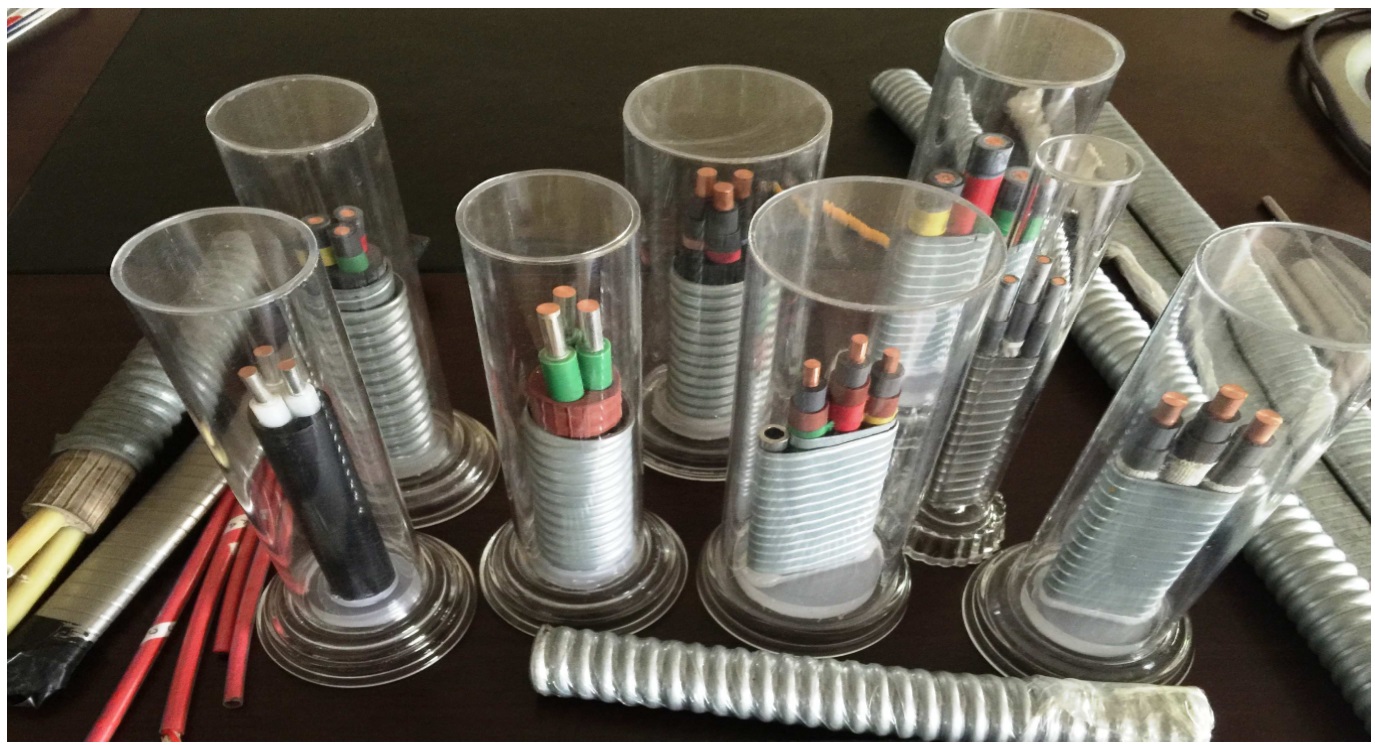

OriSun power cable and motor lead extension are in a wide range of sizes and construction types to be compatible with the most extreme downhole conditions. They are offered in both round and flat constructions with varying designs adapted to different well environments, based on temperature, corrosion and pressure-resistance needs. All designs reference IEEE 1018, IEEE 1019 and all subordinate specifications. The round cable is generally used in oil wells where there is no limitation of space between the annulus of the tubing and casing, if this limitation exists, flat configuration has to be used. The conductor used in the type cable is copper,  with 99.9% purity. Wire size is selected according to the required current capacity, voltage drop, economic considerations and characteristics of the well.

Its copper wire may be tinned, with the aim of increasing its resistance to oxidation, gas attack and to improve adherence to the compound of isolation. The typical cables are composed of three  insulated phase conductors and pre-assembled, which can be solid, stranded or compact stranded The solid conductors are mainly used where a good blocking is required against the migration of gases and minimize the damage by hydrogen sulfide.

The insulation and jacket materials are selected according to the characteristics of the well where they are installed. Factors determine the proper selection of this compound are: temperature, pressure, gasliquid ratio, operating voltage, physical stress on the cable. Insulation materials determined by IEEE standard are EPDM (Ethylene-polypropylene Diene Monomer) and PP (polypropylene). EPDM and Nitrile are generally used for jackets.

The armor on the cable provides protection and mechanical strength, as well as resistance against the expansion of elastomeric materials (insulation and jackets) when exposed to well fluids. The armor can be galvanized steel, stainless steel, or Monel. The selection of reinforcement material is based on the corrosiveness of the fluid in the well into which the cable will be installed. Monel is used in the harshest environments, some of which include C02, H2S and high temperatures environments.

Electrical Testing Standards
Conductivity:  ICEA S-96-659 in reference to ASTM B3/B33/B189
High Voltage Withstand Tests:   IEEE 1018 & IEEE 1019 in reference to ICEA T-27-581
Insulation Conductance: IEEE 1018 & IEEE 1019 in reference to API RP 11S6
Phase Unbalance: IEEE 1018 & IEEE 1019 in reference to API RP 11S6


QYPN 205
Polypropylene insulation with a rubber nitrile jacket. Operating temperature rating up to 205¡ãF/ 96¡ãC. Voltage rating of 3KV, 5KV, or 6 KV. Interlocking and preformed steel tape are used separately for Round or Flat Cable configuration.

QYPL225
Polypropylene insulation with a lead sheeth jacket. Operating temperature rating up to 225¡ãF/ 107¡ãC. Voltage rating of 3KV, 5KV, or 6 KV. Interlocking and preformed steel tape are used separately for Round or Flat Cable configuration..

QYEN285
EPDM insulation with a choice of nitrile rubber or EPDM jacket. Operating temperature rating up to 385¡ãF / 140¡ãC. Voltage rating of 3KV, 5KV, or 6 KV. Interlocking and preformed steel tape are used separately for Round or Flat Cable configuration.

QYEE300
EPDM insulation with EPDM jacket. Operating temperature rating up to 300¡ãF / 149¡ãC. Voltage rating of 3KV, 5 KV and 6KV. Interlocking and preformed steel tape are used separately for Round or Flat Cable configuration.

QYEE400
EPDM insulation with EPDM jacket. Operating temperature rating up to 400¡ãF / 204¡ãC. Voltage rating of 3KV, 5 KV and 6KV. Interlocking and preformed steel tape are used separately for Round or Flat Cable configuration.

QYEL450
EPDM insulation with lead jacket. Operating temperature rating up to 450¡ãF / 232¡ãC. Voltage rating of 3KV, 5 KV and 6KV. Interlocking and preformed steel tape are used separately for Round or Flat Cable configuration.


Motor Lead Extension Cable (MLE)

QYKEN
Polyimide film plus EPDM as insulation, NBR for jacket, Tape or Nylon Braid, preformed steel tape - Flat Cable . Operating temperature rating up to 285¡ãF / 140¡ãC. Voltage rating of 4KV, 6KV.
QYKEE
Polyimide film plus EPDM as insulation, EPDM for jacket, Tape or Nylon Braid, preformed steel tape - Flat Cable. Operating temperature rating up to 400¡ãF / 204¡ãC. Voltage rating of 4KV, 6KV.

QYKEL
Polyimide film plus improved EPDM as insulation, Lead sheath for jacket, bedding  layer, preformed steel tape - Flat Cable. Operating temperature rating up to 450¡ãF / 232¡ãC. Voltage rating of 4KV, 6KV.


________________________________


Cable Armor Configurations

To provide the best protection available, OriSun provides Galvanized Steel Armor, optional Armors are available for extra protection. These include Monel and Stainless Steel.

Round Cable Armor
Round cable can be protected with several types of interlocked armor.
²       Standard Galvanized Steel with thickness of .020"£¬and heavy galvanized armor protection 0.025¡±
²       Stainless Steel with thickness of .020"
²       Monel 400 with thickness of .015" and .020"

Flat Cable Armor
Flat cable can be protected with several types of armors.
²       Standard Galvanized Steel with thickness of .020"
²       Stainless Steel with thickness of .020"
²       Monel 400 with thickness of .015"


Notes
The cables with heavy galvanized steel armor ate not covered in this catalogue. Please contact our representative if heavy galvanized steel armor is required.
