CABLE QYEL450
QYEL450



Submersible Cable, QYEL450 Flat

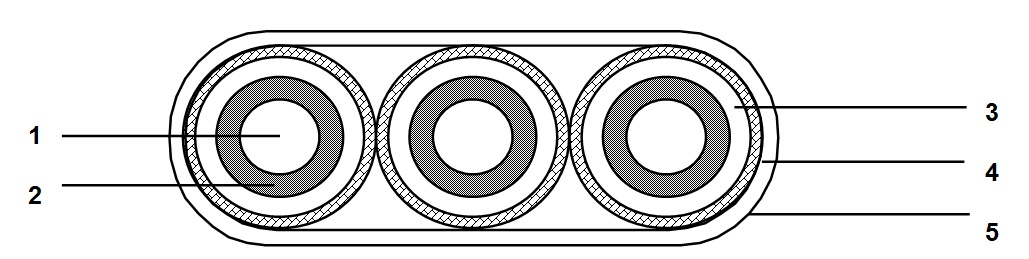

1. Conductor 2. EPDM Insulation 3. Lead sheeth 4. Tape or braid 5. Armor



Structure Description Profile Dimension Weight
AWG Area Contr  Contr OD Insulation, EPDM Lead Sheath MNL Armor 12.7 x 0.38mm
# mm2 ¡¡ Inch Inch Inch Inch lb/ft
1 42.4 1 0.29 0.44 0.51

1.66

x 0.63 2.26
1 42.4 7/2.9 0.30 0.45 0.52

1.69

x 0.64 2.32
2 33.6 1 0.26 0.41 0.48

1.56

x 0.60 2.01
2 33.6 7/2.54 0.27 0.42 0.49

1.61

x 0.61 2.10
4 21.2 1 0.20 0.35 0.42



1.41

x 0.55 1.62
5 16.8 1 0.18 0.33 0.40

1.34

x 0.53 1.47
6 13.3 1 0.16 0.31 0.38

1.28

x 0.51 1.34
AWG Area Contr  Contr OD Insulation, EPDM Lead Sheath SST Armor 12.7 x 0.5mm
# mm2 ¡¡ Inch Inch Inch Inch lb/ft
1 42.4 1 0.29 0.44 0.51 1.68 x 0.63 2.28
1 42.4 7/2.9 0.30 0.45 0.52 1.71 x 0.64 2.33
2 33.6 1 0.26 0.41 0.48 1.58 x 0.60 2.02
2 33.6 7/2.54 0.27 0.42 0.49 1.63 x 0.61 2.10
4 21.2 1 0.20 0.35 0.42 1.42 x 0.55 1.63
5 16.8 1 0.18 0.33 0.40 1.36 x 0.52 1.48
6 13.3 1 0.16 0.31 0.38 1.30 x 0.50 1.36
AWG Area Contr  Contr OD Insulation, EPDM Lead Sheath Galv Armor 12.7 x  0.5mm
# mm2 ¡¡ Inch Inch Inch Inch lb/ft
1 42.4 1 0.29 0.44 0.51 1.68 x 0.65 2.27
1 42.4 7/2.9 0.30 0.45 0.52 1.71 x 0.66 2.33
2 33.6 1 0.26 0.41 0.48 1.58 x 0.60 1.95
2 33.6 7/2.54 0.27 0.42 0.49 1.62 x 0.63 2.10
4 21.2 1 0.20 0.35 0.42 1.42 x 0.54 1.63
5 16.8 1 0.18 0.33 0.40 1.34 x 0.52 1.34
6 13.3 1 0.16 0.31 0.38 1.30 x 0.51 1.28
AWG Area Contr  Contr OD Insulation, EPDM Lead Sheath Galv Armor 12.7 x 0.635mm
# mm2 ¡¡ Inch Inch Inch Inch lb/ft
1 42.4 1 0.291 0.44 0.51 1.70 x 0.71 2.36
1 42.4 7/2.9 0.300 0.45 0.52 1.73 x 0.72 2.41
2 33.6 1 0.258 0.41 0.48 1.60 x 0.68 2.10
2 33.6 7/2.54 0.273 0.42 0.49 1.65 x 0.69 2.18
4 21.2 1 0.205 0.35 0.42 1.45 x 0.63 1.69
5 16.8 1 0.179 0.33 0.40 1.38 x 0.60 1.55
6 13.3 1 0.163 0.31 0.38 1.32 x 0.59 1.42
AWG Area Contr  Contr OD Insulation, EPDM Lead Sheath Galv Armor 12.7 x 0.86mm
@ mm2 ¡¡ Inch Inch Inch Inch lb/ft
1 42.4 1 0.29 0.44 0.51 1.74 x 0.77 2.49
1 42.4 7/2.9 0.30 0.45 0.52 1.77 x 0.78 2.54
2 33.6 1 0.26 0.41 0.48 1.64 x 0.74 2.22
2 33.6 7/2.54 0.27 0.42 0.49 1.68 x 0.75 2.31
4 21.2 1 0.21 0.35 0.42 1.48 x 0.68 1.81
5 16.8 1 0.18 0.33 0.40 1.41 x 0.66 1.65
6 13.3 1 0.16 0.31 0.38 1.35 x 0.64 1.52
