Monel is a solid-solution binary alloy. As nickel and copper are mutually soluble in all proportions, it is a single-phase alloy. Compared to steel, Monel is very difficult to machine as it work-hardens very quickly. It needs to be turned and worked at slow speeds and low feed rates. It is resistant to corrosion and acids. It is commonly used in applications with highly corrosive conditions.

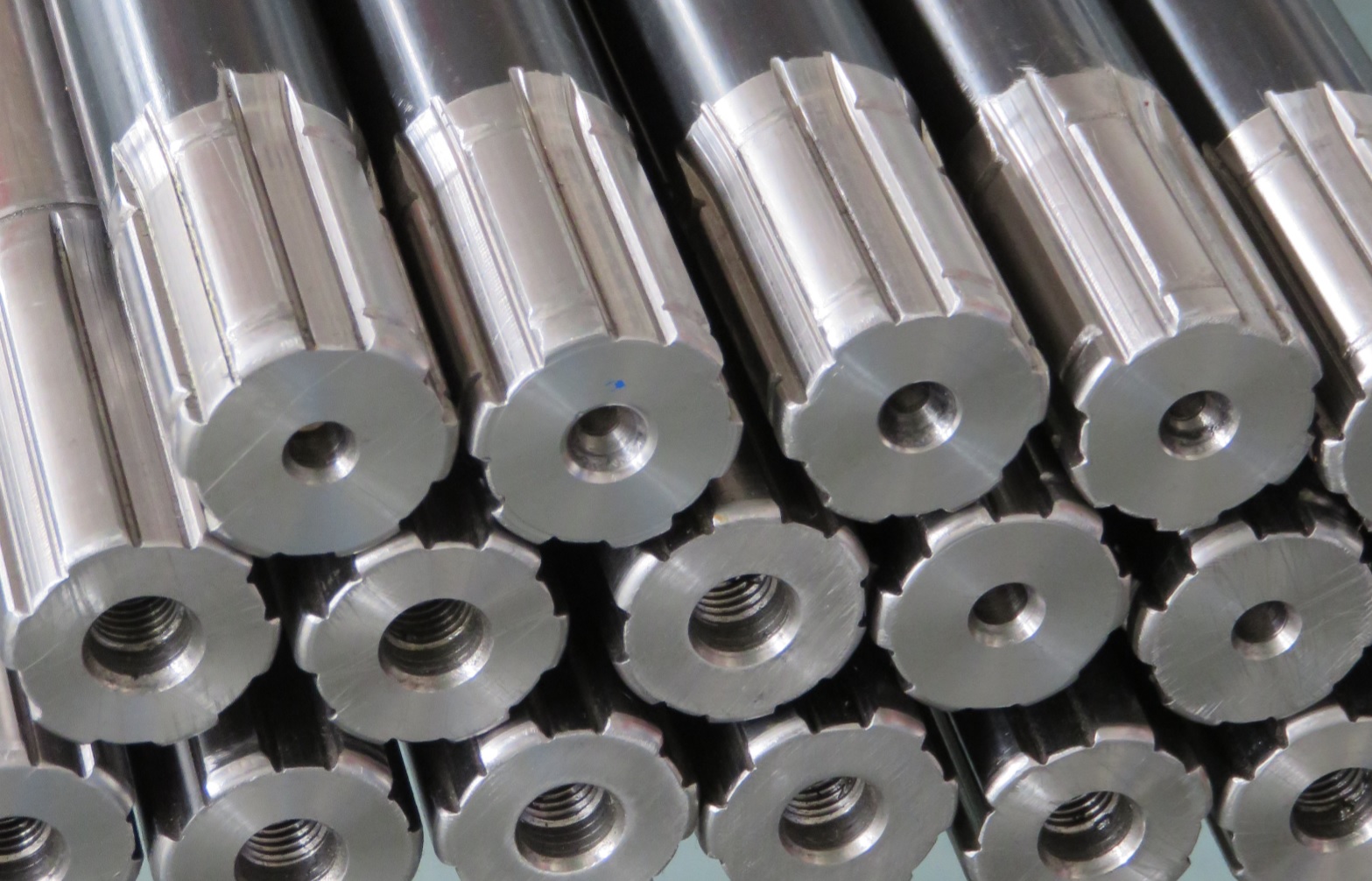

OriSun Monel K-500 Alloy in the cold drawn and aged condition is furnished for ESP shaft components in pump, protectors and gas separators on submersible pumping systems for oil production.
Applicable Standards:
ASTM B-865 , ASTM E-8 , ASTM E18, ASTM E1473
Material Composition meeting to Standard of ASTM B-865
|
Element (% by mass) |
|
Element |
Content |
|
Ni (Nickel)............................................. |
>63.0 |
|
Ti (Titanium)......................................... |
0.35 ¨C 0.85 |
|
Al (Aluminum)....................................... |
2.3 ¨C 3.15 |
|
C (Carbon)........................................... |
¡Ü0.18 |
|
Mn (Manganese).................................... |
¡Ü0.15 |
|
Si (Silicon)............................................. |
¡Ü0.50 |
|
S (Sulfer).............................................. |
¡Ü0.01 |
|
Cu (Copper)........................................... |
27.0 ¨C 33.0 |
|
Fe (Iron)................................................. |
¡Ü0.2 |
OriSun Co Ltd. stocks Monel K500 in a range of sizes including 10-50mm diameter cold drawn, annealed and aged, and 50-100mm diameter hot finished and aged. Material can be supplied in random lengths, cut to order or machined to your specifications. Machining includes drilling, turning, tapping, threading, CNC shapes, flanges and more. |
